Description

Description

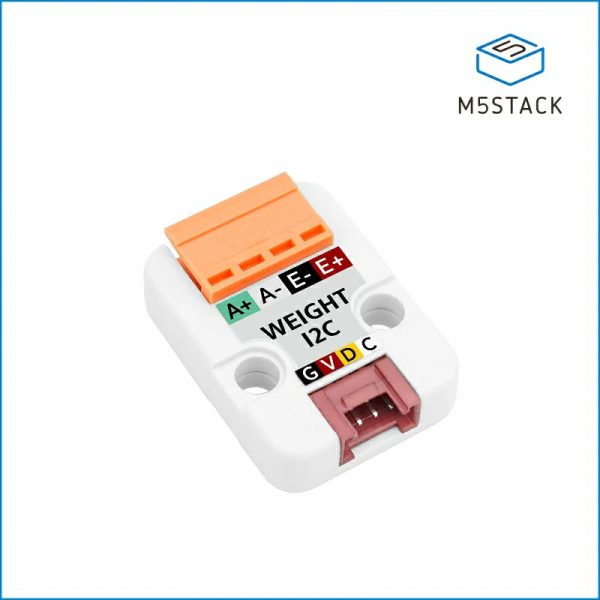

The Weight I2C Unit is a weight acquisition transducer unit that employs the STM32+HX711 chip solution, achieving precision weight measurement with 24-bit accuracy through I2C communication. It supports the parallel connection of multiple devices on the same I2C bus, providing users with greater flexibility in terms of a wider range and more data collection points. It is suitable for various applications such as industrial production, healthcare, logistics, laboratory research, and food processing.

Features

• STM32F030F4P6+HX711
• 24Bit measurement accuracy
• I2C serial communication
• Program platform: Arduino, UIFlow, etc

• Includes

  • 1x Weight I2C Unit
  • 1x HY2.0-4P Cable(20cm)
  • 1x VH3.96-4P

  • Applications

    • Microgravimeter
    • Food Processing
    • Logistics Transportation
    • Laboratory Investigation

    • Specification

      Resources		Parameters
      Resolution		24Bit
      Communication Mode		I2C（0x26）
      Operating Temperature		0-40°C
      Product Size		32*24*11.3mm
      Package Size		136* 92* 13.7mm
      Product Weight		5.2g
      Package Weight		12.9g
