Description

Description

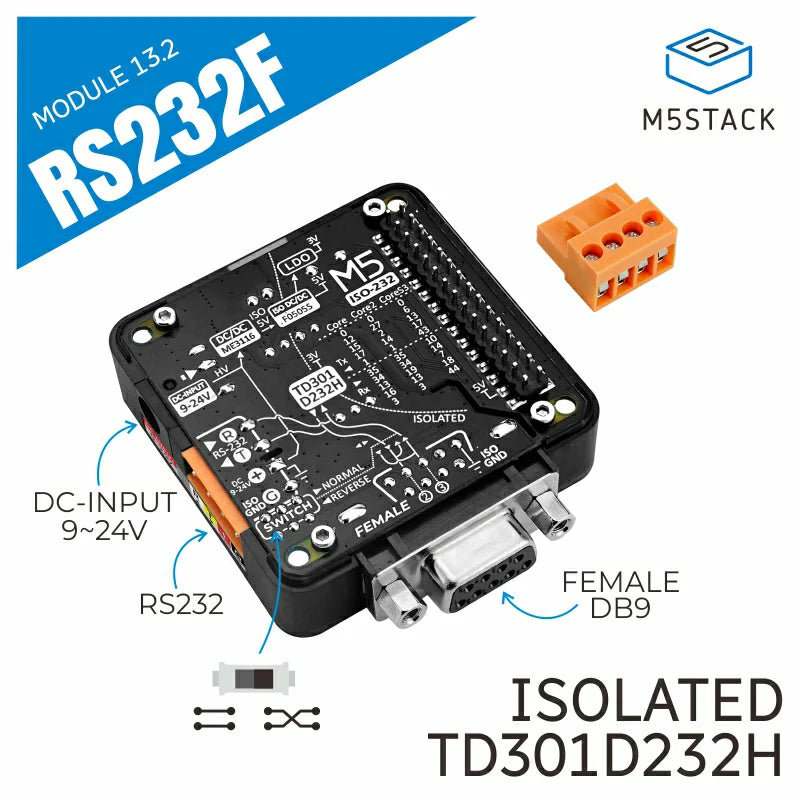

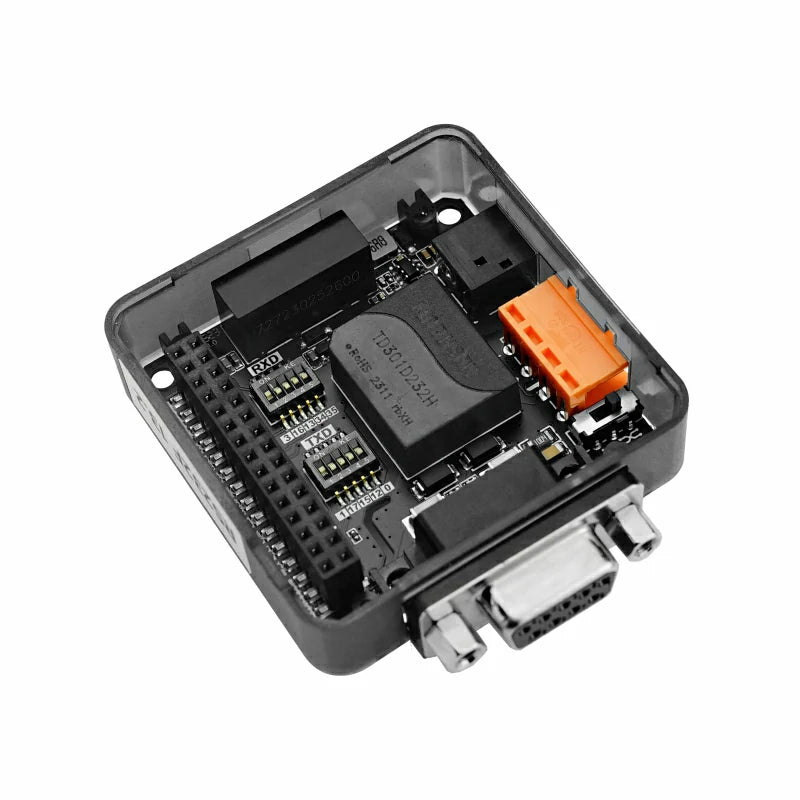

RS232F Module 13.2 is an expansion module of RS232 serial communication with isolation, using the scheme of TD301D232H serial port conversion chip + Female DB9 interface to realize the interface conversion between RS232 and TTL CMOS logic level signals, and using F0505S-2WR3 DC-DC power module to realize electrical and noise isolation functions, toggle switch and coding switch It can realize the pass-through or cross-switching of DB9 signal lines and the switching of serial interfaces to meet different connection needs. The module has a built-in DC power input socket and a corresponding DC-DC circuit to provide power to the entire device. The product is suitable for industrial automation, instrumentation, medical equipment and communication equipment.

Features

• TD301D232H serial port chip, support full duplex, fast and reliable
• F0505S-2WR3 Electrical and noise isolation
• Toggle switches and coded switches switch line sequence and GPIO
• Programming platform: Arduino, UIFlow

• Includes

  • 1 × RS232F Module 13.2

  • Applications

    • Industrial automation
    • Instrumentation
    • Medical equipment
    • Communication equipment

    • Specification

      Resources		Parameters
      RS232		TD301D232H
      DC-DC isolation		F0505S-2WR3
      Communication rate		Up to 115200bps
      Communication method		DB9 female interface with full-duplex communication and interface translation between RS232 and TTL CMOS logic level signals
      Operating temperature		0-40°
      DC power interface input voltage		0-24V
      Product Size		54*54*13.2mm
      Package Size		88*61*21mm
      Product Weight		28g
      Package Weight		60g

      Related Link

      • F0505S-2WR3
      • TD301D232H

      • Schematic



        Module Size



        Examples

        Arduino

        • Arduino Example

        • UIFlow

          • UIFlow Example
          •

            UIFlow Blocks

            • Init
            •
              • Write text a line
              •
                • Write text
                •
                  • Write raw data list
                  •
                    • Read all bytes
                    •
                      • Read characters
                      •
                        • Read bytes a line
                        •
                          • Remain cache
                          •
