Description

PRODUCT DETAILS

Description

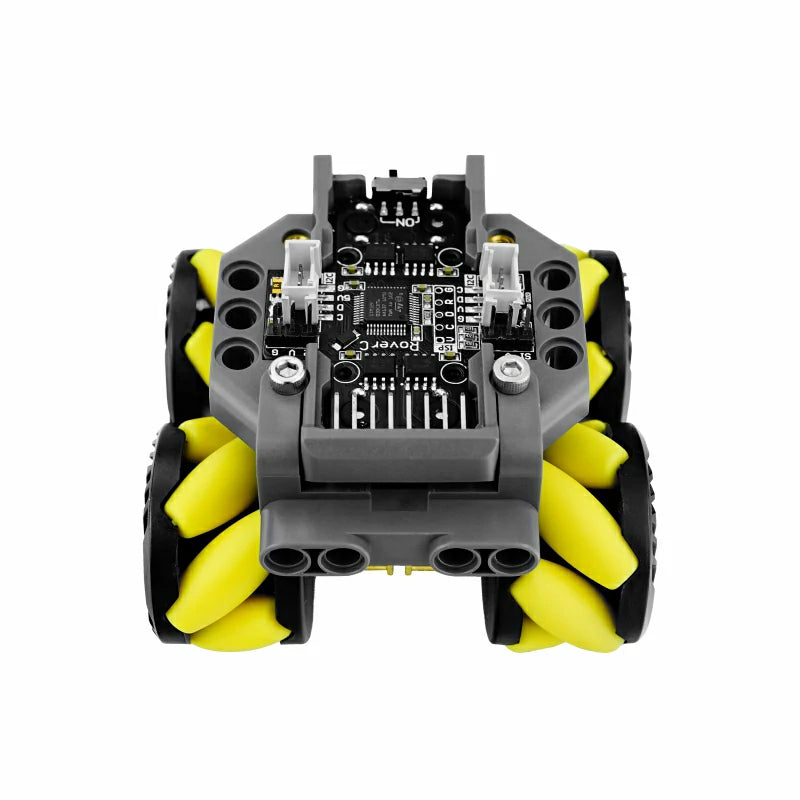

RoverC-Pro is a programmable Mecanum wheel omnidirectional mobile robot base. Compatible with M5StickC M5StickC PLUS, it can be initialized by just inserting M5StickC M5StickC PLUS. The main control chip is STM32F030C6T6, and it incorporates four N20 worm gear motors to drive the wheels directly by the motor driver.

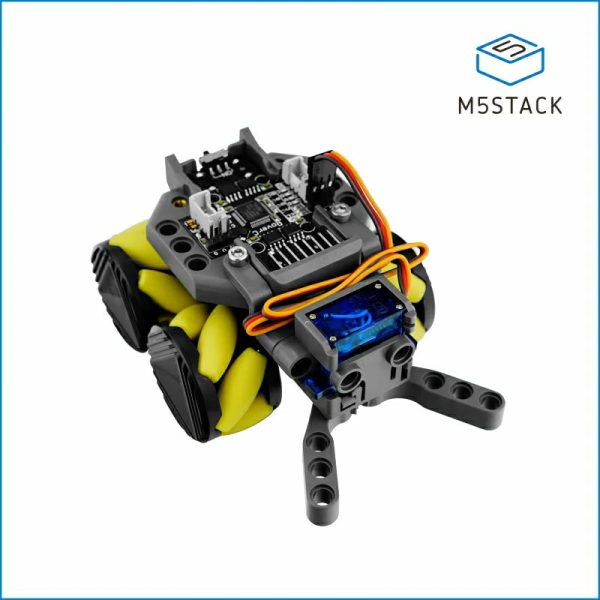

The PRO version provides a gripping mechanism controlled by a servo for gripping objects. The base provides two dedicated servo control drivers. In addition, it also provides two Grove-compatible I2C connectors to facilitate the expansion of other modules. The base is compatible with Lego and can be expanded structurally. There is an 16340 (700mAh) battery on the back, from which the battery can be replaced. It can be recharged through M5StickC M5StickC PLUS. The power of the base is controlled by an independent switch.

Product Features

• I2C Address 0x38
• Remote Control
• Gripping mechanism
• Programmable
• Four-channel motor driver
• LEGO compatible
• Extra Grove ports for expansion
• Equipped with 16340(700mAh) battery holder
• Flexible movement in all directions

• Include

  • 1x RoverC base(includes 16340(700mAh) Battery)
  • 1x Claw Kit

  • Applications

    • Autonomous Rover
    • Mini RC surveillance car
    • Smart and cognitive toys

    • Specification

      Resources		Parameter
      Communication protocol		I2C:0x38
      Net weight		187g
      Gross weight		245g
      Product Size		120 x 75 x 58mm
      Package Size		115 x 85 x 65mm

      LEARN AND DOCUMENTS

      DOCUMENTS

      RoverC with M5Atom

      RoverC with M5Atom

      Using M5StickC on RoverC and JoyC with M5Atom attached to display direction of the RoverC.

      BT programmable mecanum wheel robot

      BT programmable mecanum wheel robot

      Use BT serial to program omnidirectional movement sequences. Make a game out of it and try to guide the robot around obstacles.
