Description

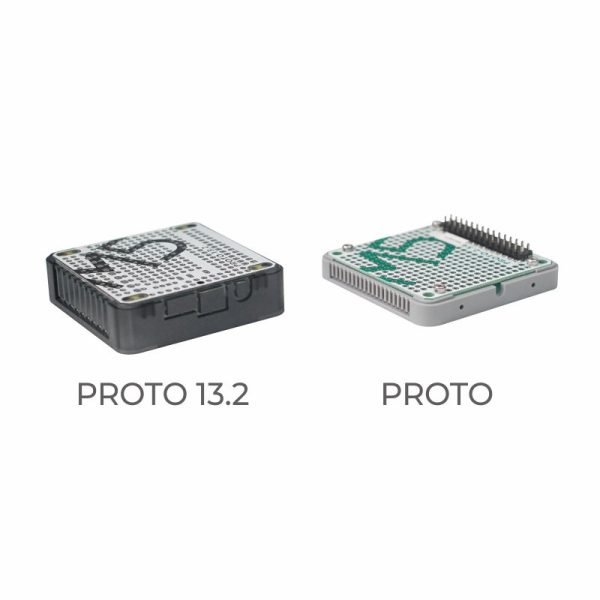

PROTO 13.2 is a universal DIY proto module in the m5stack stack module series, with a height of 13.2mm. You can easily build your own custom circuits by using this module. You can design and build the prototype circuit according to your own needs, and interact with the M5 Core on the top layer through M-BUS. There are HY2.0 4P, DC power socket, VH3.96 and other common openings on the board, so it is very simple to use.

Product Features

• Main Hole Size: 0.039 1mm (CNC Drilled)
• Hole Pitch: 0.1 – (2.54 mm)
• Entire Hole Quantity: 169 Holes

• Include

  • 1x PROTO 13.2 board
  • 3x VH-3.96 3P Plug & Plug Base
  • 1x HY-2.0 4P Plug Base
  • 1x DC 5V Power outlet
  • 4x M2*5mm Hexagon self tapping screw
  • 1x M2 Hex Key
  • 1x sticker

  • Specification

    Resources		Parameter
    Net weight		24g
    Gross weight		49g
    Product Size		54.2*54.2*13.2mm
    Package Size		93*64*20mm
