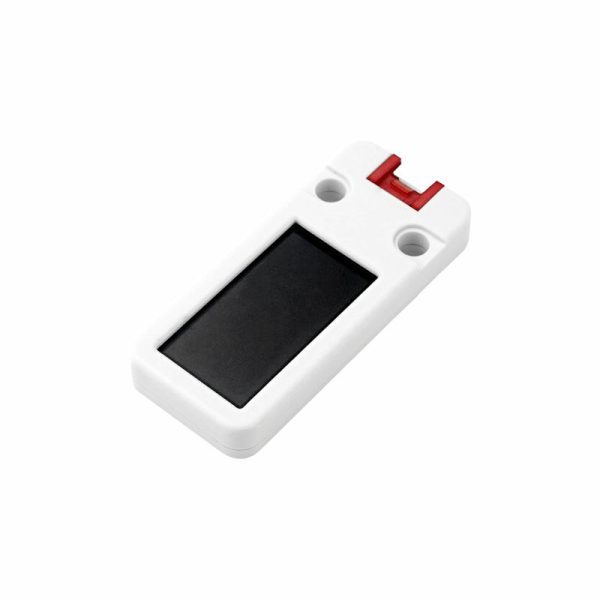

OLED Unit is a 1.3-inch OLED expansion screen unit designed to display simple content as a display panel. It features a resolution of 128×64 pixels and utilizes the SH1107 drive scheme. OLED Unit supports black and white display, providing clear and contrasted visuals.

The driver chip of OLED Unit utilizes the I2C communication interface. This allows for easy integration with existing devices by connecting it to the I2C bus, saving valuable IO pins. The I2C interface provides a convenient and efficient means of communication between the OLED Unit and the host device.

The back of the OLED screen is equipped with a magnetic design, enabling easy fixation on metal surfaces through adsorption. This design feature provides convenience and flexibility when integrating the OLED Unit into various instruments or control devices.

OLED Unit is suitable for embedding in a wide range of applications where a compact and simple display panel is required. It can be used in instruments, control devices, or any other systems that need to present basic information or visual feedback.

Product Features

• OLED display panel
• SH1107 drive scheme
• Display color: black white
• I2C communication interface
• 128*64 resolution
• Viewing angle: full viewing angle
• Magnetic back design

• Include

  • 1x Unit OLED
  • 1x HY2.0-4P Cable

  • Applications

    • Information display

    • Specification

      Specification		Parameter
      Working current		58mA
      Communication protocol		I2C address: 0x3C
      Display size		14.7 × 29.42（mm）
      Pixel pitch		0.17×0.17（mm）
      Pixel size		0.15×0.15（mm）
      Viewable		Full view
      Operating temperature		0°C to 60°C
      Net weight		9.3g
      Gross weight		20g
      Product Size		24*56*8mm
      Package Size		67*53*12mm
      Case material		Plastic ( PC )
