Description

Description

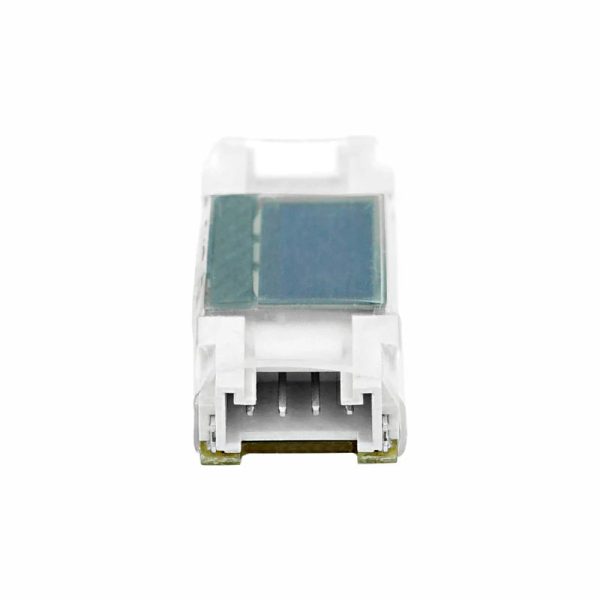

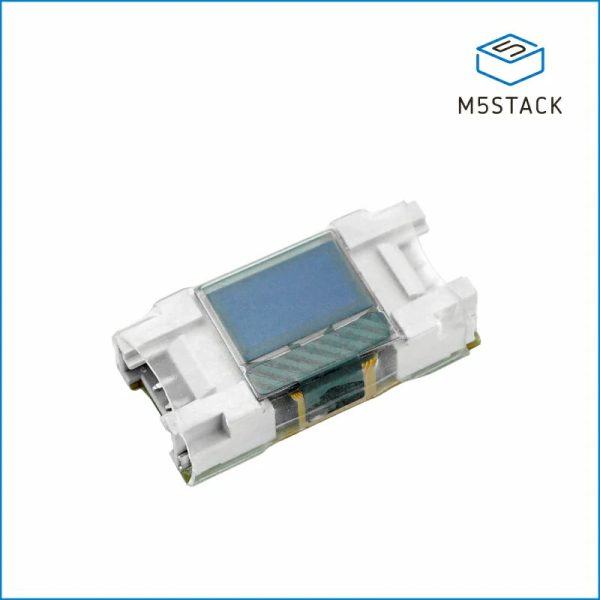

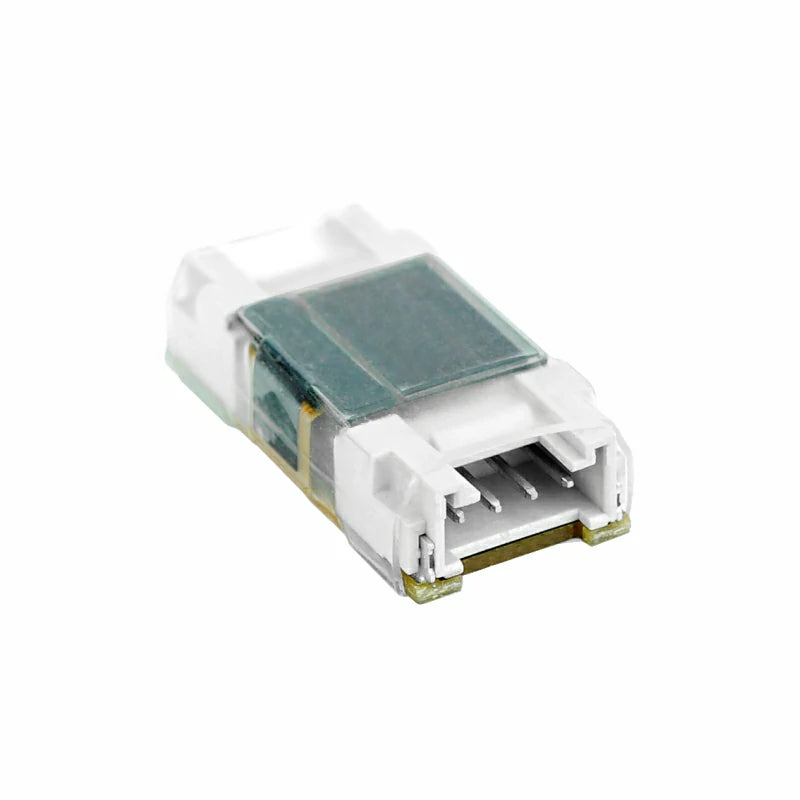

The MiniOLED UNIT is a compact and versatile OLED screen unit that s perfect for use in a wide range of applications. With its 0.42-inch size and 72×40 resolution, this monochrome white display is ideal for embedding in various home products, smart wearable devices, portable devices, and industrial instruments.

Using an I2C interface, the MiniOLED UNIT communicates seamlessly with the M5 Controller (addr: 0x3C), making it easy to integrate into your existing projects. Whether you re building a smartwatch, a fitness tracker, or any other type of device, this OLED screen unit will provide you with the clear and crisp display you need to take your project to the next level.

So why wait? Order your MiniOLED UNIT today and start building your next great project with ease!

Features

• monochrome display（white）
• I2C Address（0x3C）
• SSD1315 Driver

• Includes

  • 1 * MiniOLED UNIT
  • 1 * GROVE Cable(5cm)

  • Applications

    • Smart wearables
    • Portable equipment and industrial instrumentation
    • Home products

    • Specification

      Resources		Parameters
      Screen size		0.42-inch OLED
      resolution		72*40
      Operating voltage		3.3V
      Control chip		SSD1315
      Display color		white
      Display area		9.196 * 5.18（mm）
      Pixel pitch		0.128 * 0.13（mm）
      Operating temperature		0-40°C
      Perspective direction		Full view
      Product Size		25.8 * 11 * 6.75mm
      Package Size		136* 92* 13mm
      Product Weight		2.1g
      Package Weight		5.5g
