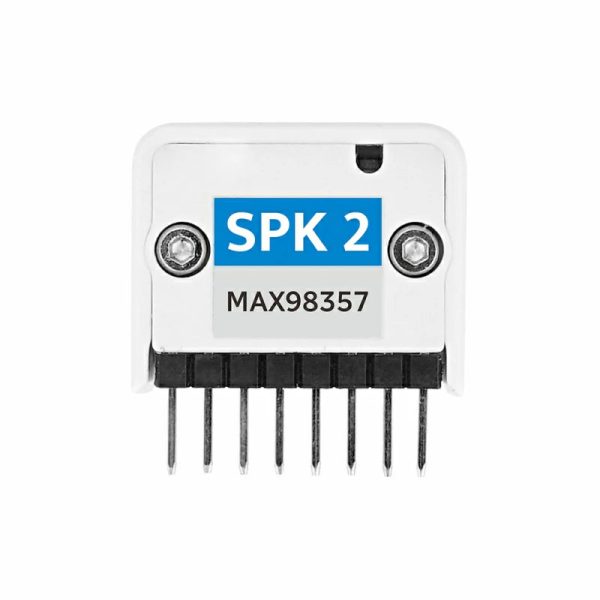

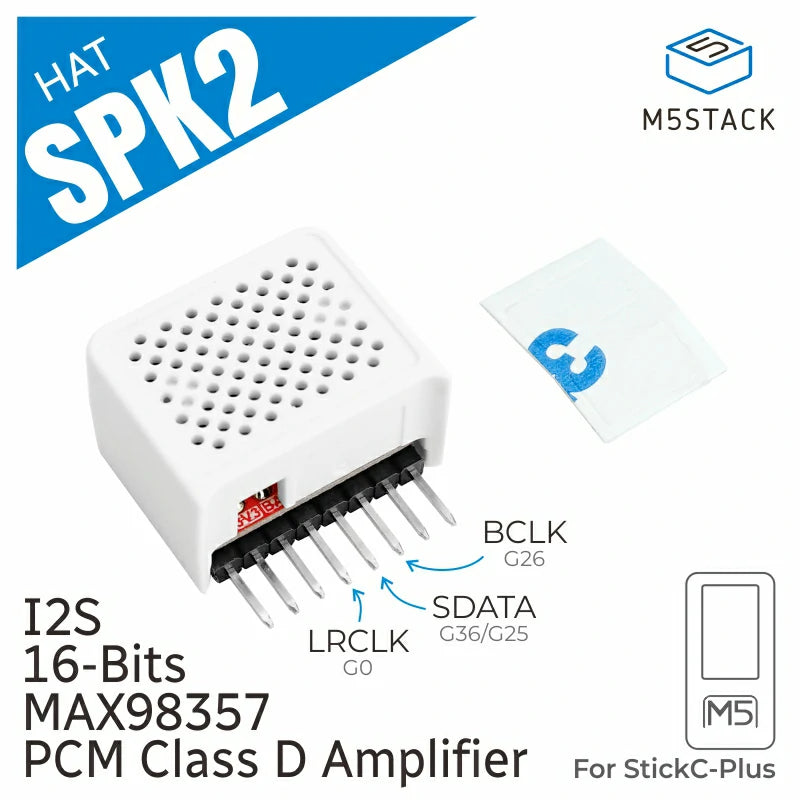

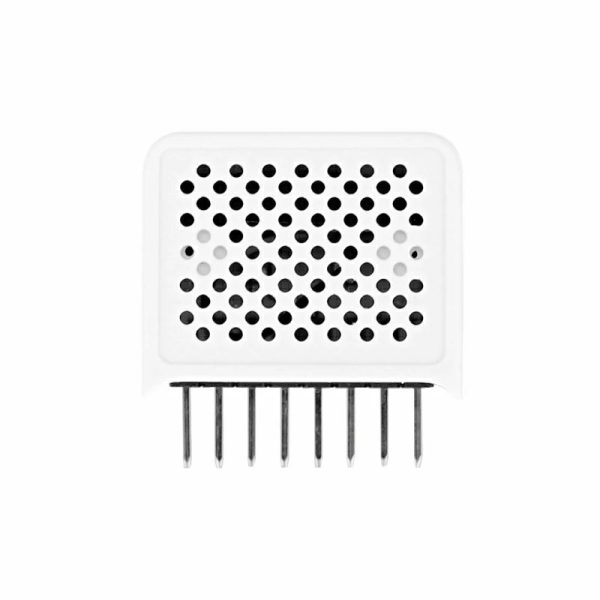

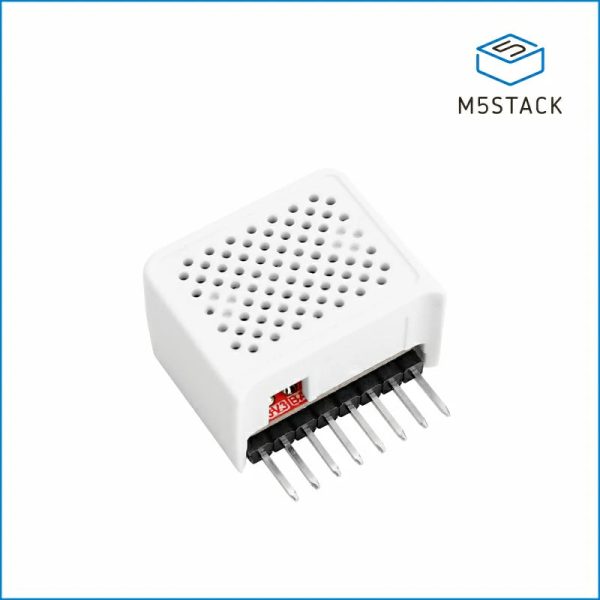

The HAT-SPK2 is a speaker with M5SticKC PLUS, built-in MAX98357 digital audio I2S amplifier IC and 1W speaker, supporting 16-bit, 32kHz to 192kHz sample rate audio input, built-in short circuit protection and over-temperature protection, suitable for a variety of audio applications.

Features

• HIGH-QUALITY AUDIO OUTPUT: SUPPORTS 16-BIT, 32KHZ TO 192KHZ SAMPLE RATE AUDIO INPUT
• Multiple output modes: including mono and stereo, as well as audio input formats such as I2S, left-justified, and right-justified
• Stability and reliability: Built-in short-circuit protection and over-temperature protection
• Programming platforms: Arduino, uiflow

• Includes

  • 1x HAT-SPK2
  • 1x Tags

  • Applications

    • Audio speakers
    • television set
    • Car audio
    • Smart speakers

    • Specifications

      Resources		Parameters
      Power output		Maximum 3.2W
      Signal-to-noise ratio		103dB
      Distortion rate		0.1%
      Supply voltage		4.5v-5.5v
      Operating temperature range		0-40°C
      Enter the audio format		I2S, left-aligned, right-aligned
      Sample rate		8kHz-96kHz
      Control interface		I2S
      Product Size		24 × 18.6 ×13.7mm
      Package Size		136m × 92 ×13mm
      Product Weight		4.6g
      Package Weight		8.1g
