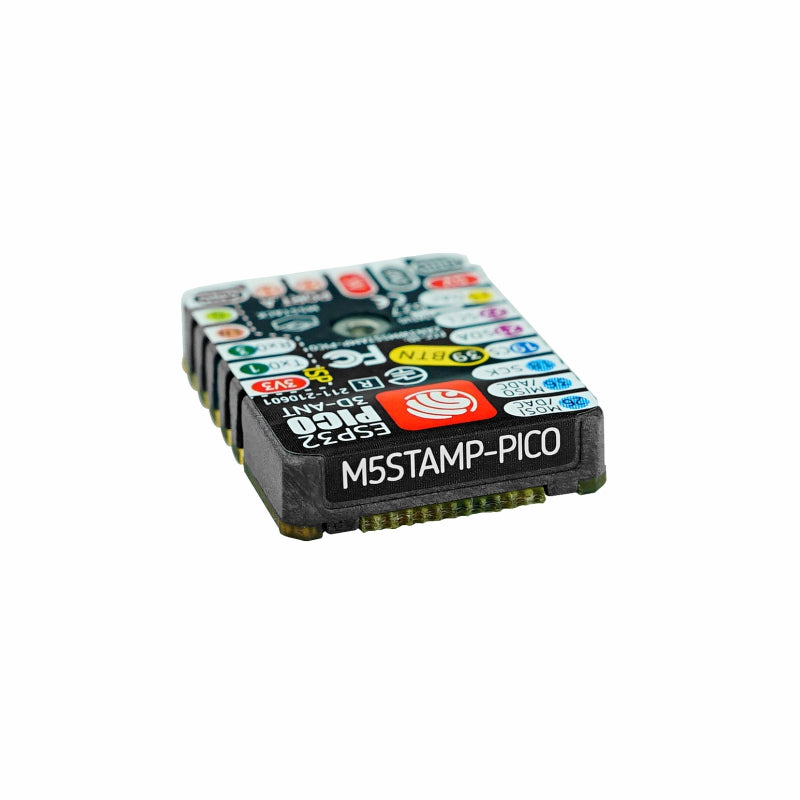

STAMP-PICO features an ultra-compact design with two low-power Xtensa® 32-bit LX6 microprocessors at 240MHz on a PCB as tiny and delicate as a postage stamp. low power consumption. It is ideal for any space-constrained or battery-powered devices such as wearables, medical devices, sensors, and other IoT devices.

• 1, MULTIFORM: 5 options of installation, means endless possibilities! (SMT, DIP, flywire, grove interface), with a high-temperature resistant plastic shell, 3D antenna and components can be better protected.
• 2, LOW-CODE DEVELOPMENT: STAMP-PICO supports UIFlow graphical programming platform, scripting-free, cloud push; and fully compatible with Arduino, MicroPython, ESP32-IDF, and other mainstream development platforms to quickly build various applications.
• 3, HIGH INTEGRATION: STAMP-PICO contains 5V->3.3V DC DC port, GPIOx12, programmable RGB light x1, button x1, finely tuned RF circuit, providing stable and reliable wireless communication.
• 4, STRONG EXPANDABILITY: Easy access to M5Stack s hardware and software ecology system: a wealth of sensors, actuators, functional modules, and accessories to choose from, Extremely fast adaptation.

• Product Features

  • Chip-set:ESP32-PICO-D4 (2.4GHz Wi-Fi dual mode)
  • Support UIFlow graphical programming
  • Multi-IO pinout, support multiple application forms (SMT, DIP, fly-by-wire)
  • Integrated programmable RGB LEDs and buttons
  • Miniature module

  • Include

    • M5Stamp Pico DIY Kit:
      • 1 x M5Stamp Pico
      • 1 x Sticker
      • 4 x Pin Headers
      • 1 x 90° Grove Connector
      • 1 x Hex Key
      • 1 x ESP32 Downloade
      • •




          Applications

          • Instrumentation
          • Wi-Fi Remote Monitoring Control
          • Smart Home
          • Color LED Control
          • Fire security intelligent integrated management
          • Smart Card Terminal
          • Wireless POS

          •

            Specification

            Resources		Parameter
            Master Control Resource		ESP32-PICO-D4
            Flash		4MB
            Input Voltage		5V @ 500mA
            Power consumption		Normal standby:5V@29mA, WIFI STA mode: 5V@60mA, BT mode data sending status: 5V@84mA, Deep-sleep mode: [email protected]
            Wireless communication distance		AP Mode: 16m
            UI		Programmable physical keys x 1, Programmable RGB LED (SK6812) x 1
            Antenna Type		2.4G 3D Antenna
            Wi-Fi		802.11 b g n (up to 150 Mbps for 802.11n), spectrum range: 2.4 GHz ~ 2.5 GHz
            Module Resource Interface		ADC, DAC, touch sensor, SD SDIO MMC host controller, SPI, SDIO SPI slave controller, EMAC, motor PWM, LED PWM, UART, I2C, I2S, IR remote controller, GPIO, pulse counter
            IO interface x12		G0, G1, G3, G26, G36, G18, G19, G21, G22, G25, G32, G33
            IO interface spacing		2.54mm
            perating temperature		0°C to 60°C
            Net weight		2.6g
            M5Stamp Pico (5pcs) Gross weight		18g
            M5Stamp Pico Mate Gross weight		6g
            M5Stamp Pico DIY Kit Gross weight		12g
            Product Dimensions		18 * 24 * 4.6mm
            Package Size		85*55mm sealing bag (translucent)
