Description

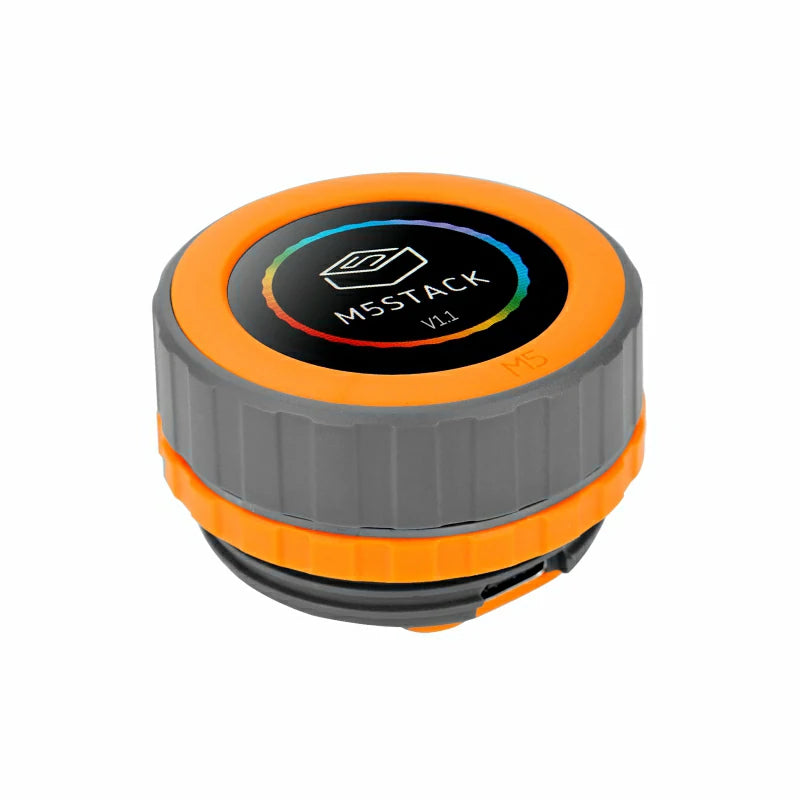

Dial v1.1 is a high-performance, multifunctional embedded development board that represents a comprehensive upgrade of the original Dial product. The new version adopts the all-new StampS3A main controller, further enhancing system processing power and stability; at the same time, the core module’s antenna and keys have been optimized, effectively improving wireless communication performance and user experience. The product features a 1.28-inch round TFT touchscreen and a high-precision rotary encoder, and it comes with a built-in RFID detection module, RTC circuit, onboard buzzer, and under-screen buttons, enabling device interaction and alert wake-up functions. Its power supply supports a wide DC input voltage of DC 6~36V and includes a reserved lithium battery interface and charging circuit to meet diverse application requirements. Additionally, the reserved PORT.A and PORT.B interfaces facilitate the expansion of I2C and GPIO devices. This product is widely applicable in smart home control, IoT applications, smart wearables, access control systems, industrial control, and educational maker projects.

Features

• Round TFT touchscreen
• StampS3A as the main controller
• Rotary encoder
• RFID detection module
• Wide voltage input

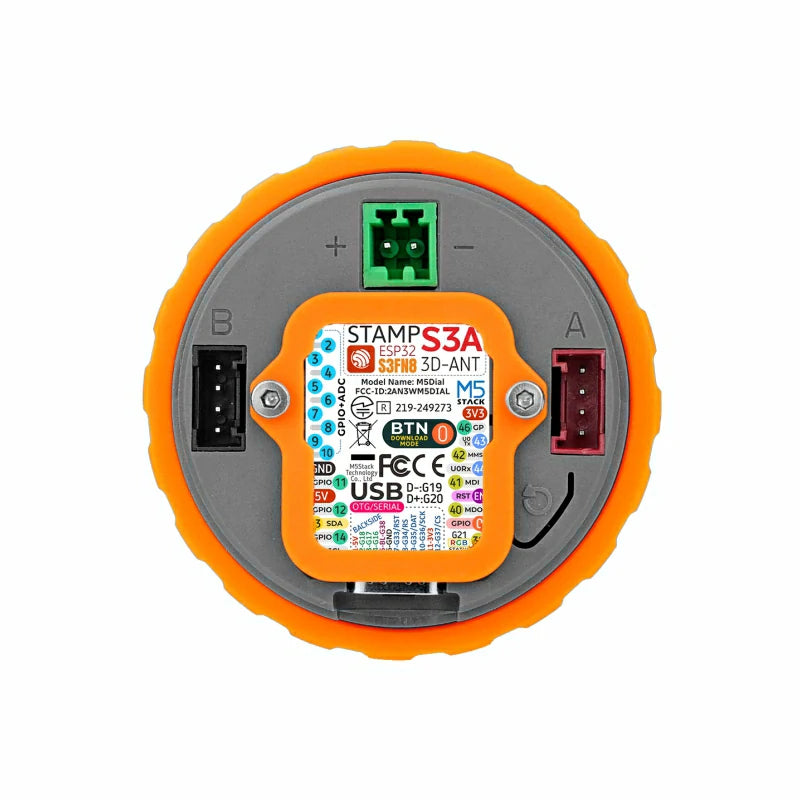

• Interface expansion: Reserved PORT.A and PORT.B interfaces
• Programming Platforms
  • Arduino
  • UIFlow 2.0
  • ESP-IDF

  • • Includes

      • 1 x Dial V1.1
      • 1 x L-shaped 1.5mm hex key (for M2 screws)
      • 1 x 2.54-2P terminal

      • Applications

        • Smart home control
        • IoT projects
        • Access control systems
        • Industrial control

        • Specifications

          Specification		Parameter
          SoC		ESP32-S3 (Xtensa LX7), 8MB Flash, Wi-Fi, OTG, CDC
          Flash		8MB
          Wide Voltage Input Range		DC 6~36V
          Screen Driver		GC9A01 1.28 Inch 240 x 240px
          Touch Driver		FT3267
          RFID		WS1850S @ tag operating frequency: 13.56 MHz, ISO IEC 14443 Type A Type B protocol
          Encoder		Resolution: 16 positions, 64 pulses rev
          Buzzer		80dB
          Battery Socket Specification		1.25mm-2P
          Sleep Current		USB power: [email protected] (LDO consumption) Battery only: DC-4V@6uA
          Working Current		USB power: [email protected] Battery only: DC-4V@100mA
          Working Temperature		0-40°C
          Product Size		51.0 x 51.0 x 32.3mm
          Packaging Size		163.0 x 120.0 x 59.0mm
          Product Weight		46.2g
          Gross Weight		61.0g

          Product Comparison

          Comparison Item		Dial v1.1		Dial
          Core Module		StampS3A		StampS3
          Antenna Design		Optimized design, stronger signal		Conventional design
          Key Specifications		Optimized key feel, keys sized at 4.0 x 3.0 x 2.0mm		Key size of 2.6 x 1.6 x 0.55mm
          Power Consumption		Optimized for lower power consumption		Conventional design
