Description

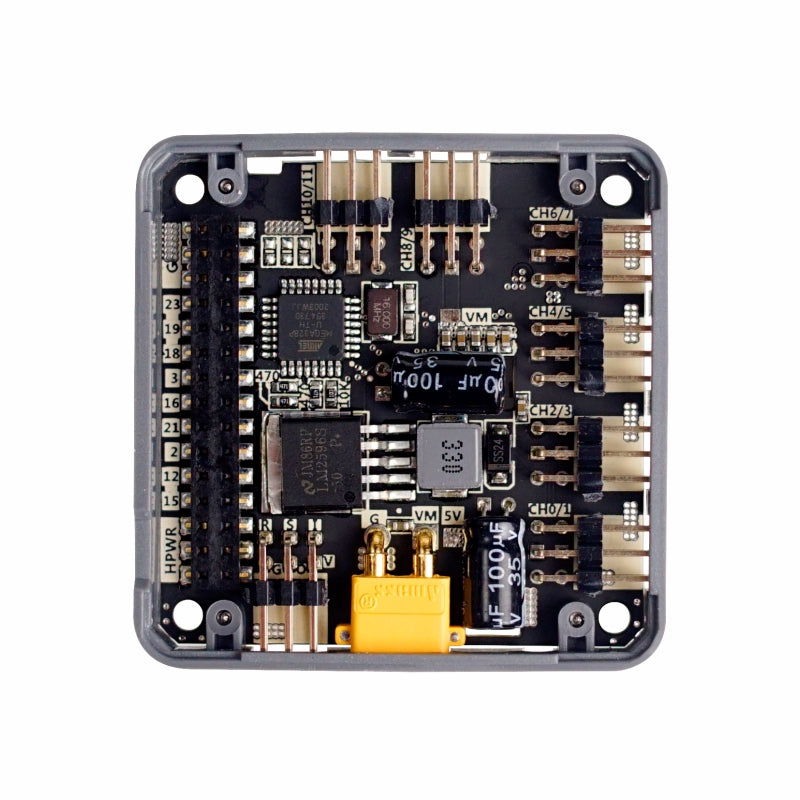

SERVO is made to implement the best, easiest way to drive Servo motors. This M5 module will make quick work of your next Servo project! It is able to drive multiple Servo motors, up to 12 channels(Max load :14W) . We also added an DC input for power supplement. Through M-BUS the DC in can automatically power the M5 core at top.Servo is powered by MEGA328 communicate via I2C(0x53).

This product is EOL now.

Product Features

• 12x servo ports
• DC power input: 5-7V
• DC Connector Type: XT30 (female)
• Power adapter interface: 5.5mm x 2.1mm

• Include

  • 1x M5Stack Servo Module
  • 1x Common Male to XT30 Male DC convertor

  • Applications

    • Humanoid robot
    • Bionic multi-joint robot
    • Triaxial Camera Cradle

    • Specification

      Resources		Parameter
      Net weight		25g
      Gross weight		45g
      Product Size		54.2*54.2*12.8mm
      Package Size		95*65*25mm
