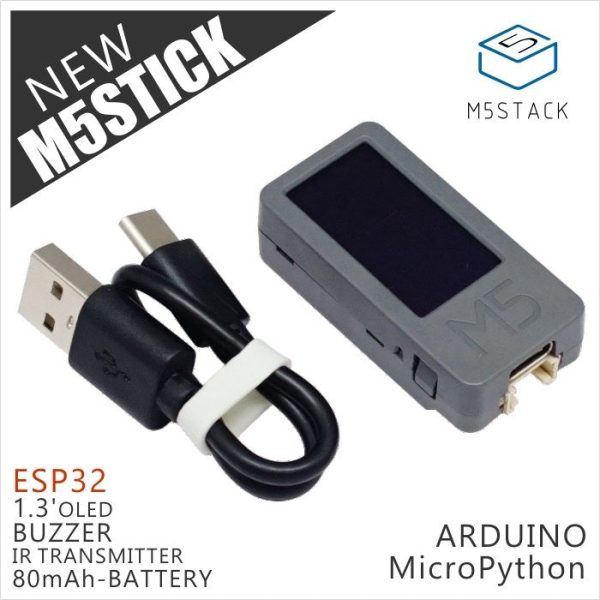

[EOL] Mini Development Kit ESP32 1.3 OLED Online
Original price was: $14.90.$7.45Current price is: $7.45.
Description
Description
Description
M5Stick is a mini M5Stack, powered by ESP32. It is a portable, easy-to-use, open source, IoT development board. What it can do? This tiny block is able to realize your idea, enlighten your creativity, and help with your IoT prototying in a very short time. It will takes away a lot of the pains form the development process.M5stick is one of the core devices in M5Stack product series which is built in a continues growing hardware & software ecosystem. It has a lot of compatible modules & units, as well as the open source code & engineering community that will help you maximum your benefit in every step of the developing process.
This product is EOL now, we ve released the updated version M5StickC PLUS ESP32-PICO Mini IoT Development Kit) which is fully compatible with this product.
Power on off:
-
Power on: Click the reset button
-
-
Shutdown: Double the reset button
-
Product Features
- ESP32-based
-
- Bulit-in 9-Axis IMU
-
- Blue LED
-
- Buzzer
-
- IR transmitter
-
- Buttons, OLED(1.3 inch)
-
- Lipo Battery
-
- Extendable Socket
-
- Wearable & Wall mounted
-
- Development Platform Arduino
-
Include
- 1x M5Stick
-
- 1x USB Type-C(20cm)
-
Applications
- Wearable devices
-
- Internet of things terminal controller
-
- DIY creation
-
Specification
Resources
Parameter
ESP32
240MHz dual core, 600 DMIPS, 520KB SRAM, Wi-Fi
Flash Memory
4MB
Power Input
5V @ 500mA
Port
TypeC x 1, GROVE(I2C+I 0+UART) x 1
OLED Screen
1.3 inch, 64 x 128, SH1107
Button
Custom button x 1
LED
Blue LED x 1
Buzzer
Piezo buzzer
MEMS
MPU9250(Gray version)
IR
Infrared transmission
Battery
80 mAh @ 3.7V
Operating Temperature
32°F to 104°F ( 0°C to 40°C )
Size
48.2 x 25.5 x 13.7mm
Weight
14g
Case Material
Plastic ( PC )
