Description

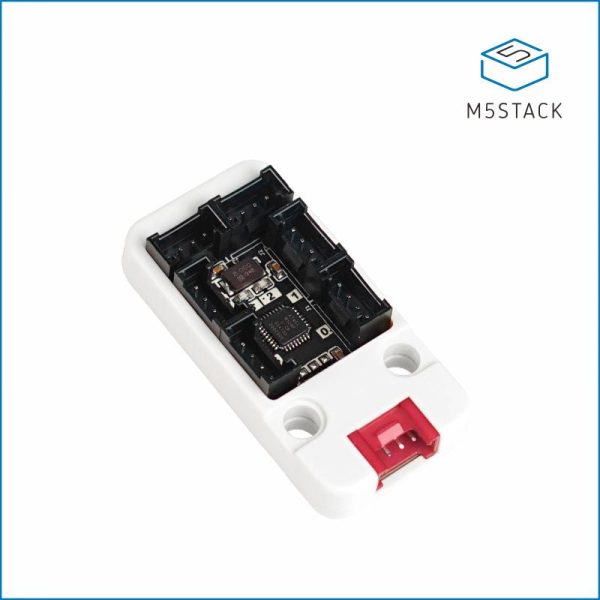

PbHub Expander unit is a single-bus board which is controlled using GROVE PortB connector (The black port on the M5Go Base).
The expander unit contains 6 ports all in 1 unit. PortB can be used as GPIO and Analog in (the two data lines are connected to GPIO36 and GPIO26 on the ESP32 module).

Similar to the PaHub Unit, the PbHub provides solution for multiple devices control using a single port – PortB. With PbHub each of the IO can be configured as input and output, it has a built-in MEGA328 MCU with a simple driver firmware installed.

This product is EOL now.

Product Features

• Single-Bus GROVE PORTB Expander
• Two Lego-compatible holes
• 1-To-6

• Include

  • 1x PbHUB Unit
  • 1x Grove Cable

  • Specification

    Resources		Parameter
    Communication protocol		I2C: 0x61(can be modified by resistance A0, A1, A2)
    Net weight		7g
    Gross weight		19g
    Product Size		48*24*12mm
    Package Size		67*53*12mm
