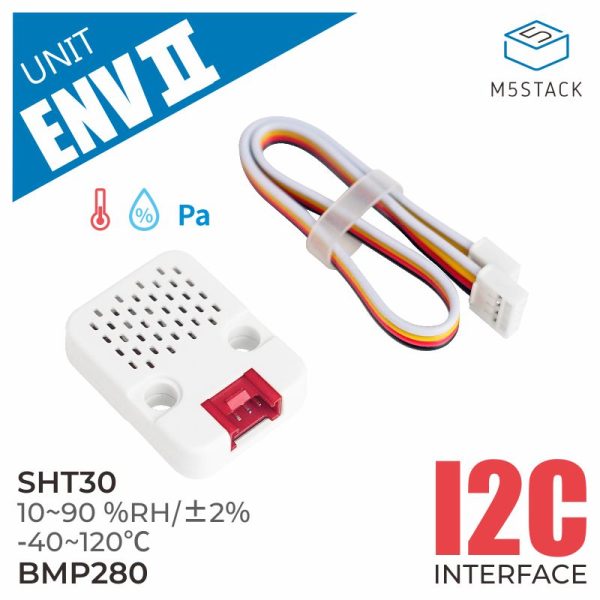

ENV II is an environmental sensor which can sense temperature, humidity and atmospheric pressure. It integrates the SHT30 and BMP280 sensors and is programmed over the I2C protocol(SHT30:0x44, BMP280:0x76).

SHT30 is a digital temperature and humidity sensor with high precision and low power consumption.

BMP280 is an absolute barometric pressure sensor which is especially designed for mobile applications. It offers the highest flexibility to optimize the device regarding power consumption, resolution and filter performance.

Product Features

• High-precision
• Support I2C
• GROVE interface, support

  UIFlow
  and

  Arduino


• Two Lego installation holes

• Includes

  • 1x ENV II Unit
  • 1x Grove Cable

  • Specification

    Specification		Parameter
    Max temperature measuring range		-40 ~ 120 ℃
    Typical temperature tolerance		0 ~ 60 ℃ ±0.2℃
    Humidity measuring range		10 ~ 90 %RH ±2%
    Air pressure measuring range		300 ~ 1100hPa ±1hPa
    Communication protocol		I2C:SHT30(0x44),BMP280(0x76)
    Operating temperature range		0°C to 60°C
    Net weight		5g
    Gross weight		17g
    Product Size		24.2*32.2*8.1mm
    Package Size		67*53*12mm
    Case material		Plastic ( PC )
