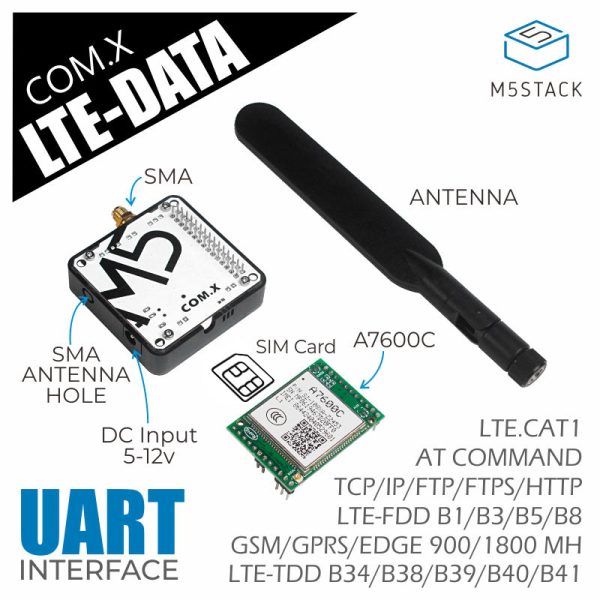

COM.LTE-DATA is a stackable multifunctional LTE communication module with built-in LTE communication module A7600C1, supporting LTE-TDD LTE-FDD EDGE GPRS and GSM frequency bands, and the transmission rate is LTE.CAT1 standard.

Its performance is stable, the appearance is small and well designed, the cost performance is high and can transmit data with low power consumption. The module has a DC power input and can provide 5V-12V power supply through an external power supply.

In order to facilitate the user to configure the pin, the DIP switch is used to set the pin. This module is especially suitable for remote meter reading, smart phones, smart wearables, smart parking, municipal management and other IoT industries with low power consumption and compact size as the core requirements.

This product is EOL now.

Notice

When used with the FIRE main control, due to the PSRAM pin conflict, please switch the DIP switch pins of the module base to TX(0 13), RX(5 15), and the device can use USB External DC is used for power supply.

When used with Core2 series main control, due to the different order of the base pin array, COM.X base pins TX(16), RX(17) correspond to the actual pins TX(14), RX of the Core2 main control (13) The equipment needs to use external DC for power supply.

Product Features

• Stackable design
• Independent external power supply
• AT command control
• SIM card type: MicroSIM
• Status signal: two LED indicators
• External antenna: SMA antenna
• Serial communication: UART 115200bps

• • Frequency band:

    • LTE-TDD B34 B38 B39 B40 B41
    • LTE-FDD B1 B3 B5 B8
    • GSM GPRS EDGE 900 1800 MHz*
    • • Data transmission speed:

        • LTE Cat 1
          • (UL) 5Mbps
          • (DL) 10Mbps
          • • EDGE
              • UL DL 236.8Kbps
              • • GPRS
                  • UL DL 85.6Kbps
                  • • • Protocol

                        • TCP IP IPV4 IPV6 MultiPDP FTP FTPS HTTP HTTPS DNS
                        • RNDIS PPP ECM
                        • SSL

                        • • Include

                            • 1x COM.LTE-DATA module
                            • 1x SMA antenna

                            • Applications

                              • Smart meter
                              • Smart parking
                              • Municipal management

                              • Specification

                                Resources		Parameter
                                Frequency band		LTE-FDD LTE-TDD WCDMA GSM
                                Network protocol		TTCP IP IPV4 IPV6 Multi-PDP FTP FTPS HTTP HTTPS DNS etc.
                                Communication		UART 115200bps
                                DC interface specifications		5.5mm
                                Net Weight		54g
                                Gross Weight		89g
                                Product Size		54.2*54.2*13.2mm
                                Package Size		165*60*36mm
