Description

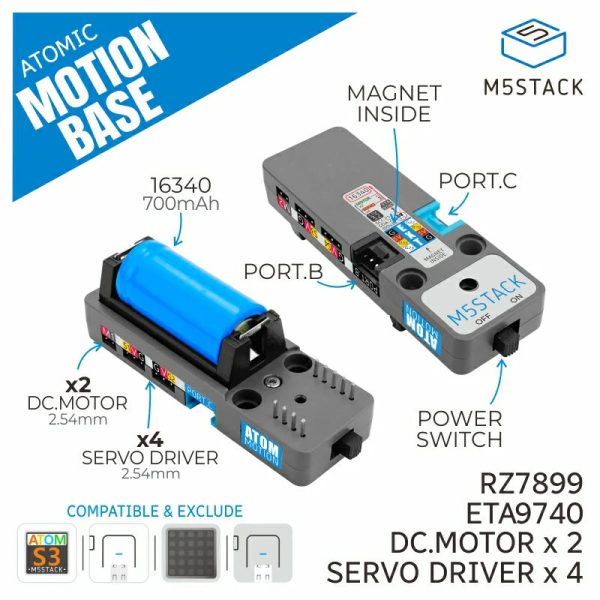

Atomic Motion Base is a servo and DC motor driver designed specifically for the ATOM series controllers. It integrates an STM32 control chip internally and uses I2C communication for control. Atomic Motion Base provides 4 servo channels and 2 DC motor interfaces, offering convenience for scenarios that require control of multiple servos or motor drivers, such as multi-axis servo robotic arms or small car motor control.

Internally, Atomic Motion Base integrates a 16340 lithium battery with a capacity of 700mAh, enabling independent power supply and convenient portability without the need for an external power source. Additionally, Atomic Motion Base provides two HY2.0-4P interface extensions, which expose 4 PIN pins that can be used for connecting sensors and other expansion devices.

Features

• Applicable to AtomS3 AtomS3 Lite Atom Lite Atom Matrix
• 4 channel servo control
• 2 channel DC motor control
• Removable lithium battery
• Magnetic back design
• Independent power switch
• 2 way HY2.0-4P expansion interface

• Includes

  • 1x Atomic Motion Base

  • Applications

    • DC motor trolley control
    • Steering gear arm control

    • Specification

      Resources		Parameters
      Removable lithium battery		Specification: 16340, capacity 700mAh
      Motor interface PIN spacing		2.54mm
      Full load steering current		3A
      Single-channel motor operating peak current		1A
      Single channel servo working peak current		0.4A
      Product Size		74*24*20.7mm
      Package Size		136* 92*13mm
      Product Weight		35g
      Package Weight		37g
