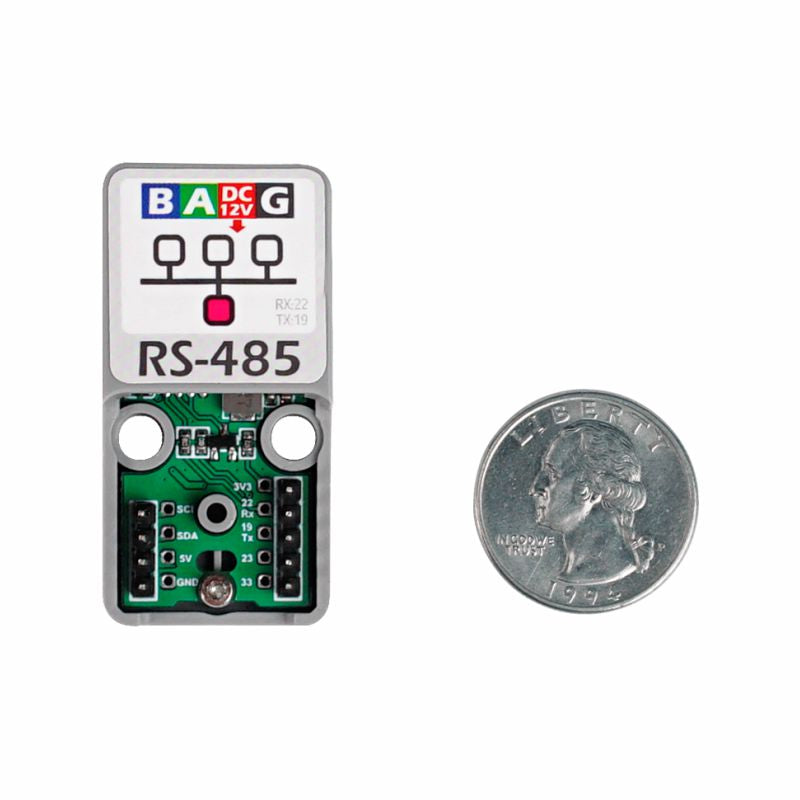

[EOL] ATOM RS485 DC DC Voltage Converter Development Kit (SP3485EE) Fashion
[EOL] ATOM RS485 DC DC Voltage Converter Development Kit (SP3485EE) Fashion - Image 2
[EOL] ATOM RS485 DC DC Voltage Converter Development Kit (SP3485EE) Fashion - Image 3
[EOL] ATOM RS485 DC DC Voltage Converter Development Kit (SP3485EE) Fashion - Image 4
[EOL] ATOM RS485 DC DC Voltage Converter Development Kit (SP3485EE) Fashion - Image 5

[EOL] ATOM RS485 DC DC Voltage Converter Development Kit (SP3485EE) Fashion

SKU: 0CF89BE966A1E72E

Original price was: $18.50.Current price is: $9.25.

In Stock
Add to wishlist

  • Price match promise

  • Free delivery on all orders

  • Safe & secure transaction

  • Extended Christmas return policy

Description

PRODUCT DETAILS

Description

ATOM RS-485 is a TTL-RS485 converter designed for use with M5Atomic. It s function is for TTL level and RS485 level-conversion. RS485 is a communication protocol standard, which is used to define the electrical characteristics of drivers and receivers of a serial communication system. It supports a multi-point system and is widely used in industry. When the applications equipment needs to communicate and be controlled through RS485, ATOM RS-485 is an excellent choice. A DC DC voltage regulator chip is integrated in the ATOM RS-485, which can directly convert the 12V voltage of RS485 to 5V to supply power for M5ATOM, avoiding the trouble of using a separate power supply.

Product Features

  • Compatible ATOM Matrix ATOM Lite
  • SP3485EE
  • Built-in DC DC
  • Multi point communication

    • Include

      • 1x ATOM RS-485
      • 1x ATOM Lite
      • 1x Hex Key
      • 1x M2*8mm Hexagon socket cup head machine screw
      • 1x 18cm TYPE-C Cable

        • Applications

          • RS485 Multi point communication
          • Industrial control node
          • RS485 to Wi-Fi

            • Specification

              Specification

              		 Parameter
              External port

              		 VH-3.96 4P
              Conversion level

              		 5V12V
              level-conversion IC

              		 SP3485EE
              DC-DC

              		 A0Z1282CI
              Net weight

              		 28g
              Gross weight

              		 38g
              Product Size

              		 24*48*18mm
              Package Size

              		 54*54*20mm
              Case material

              		 Plastic ( PC )
