Description

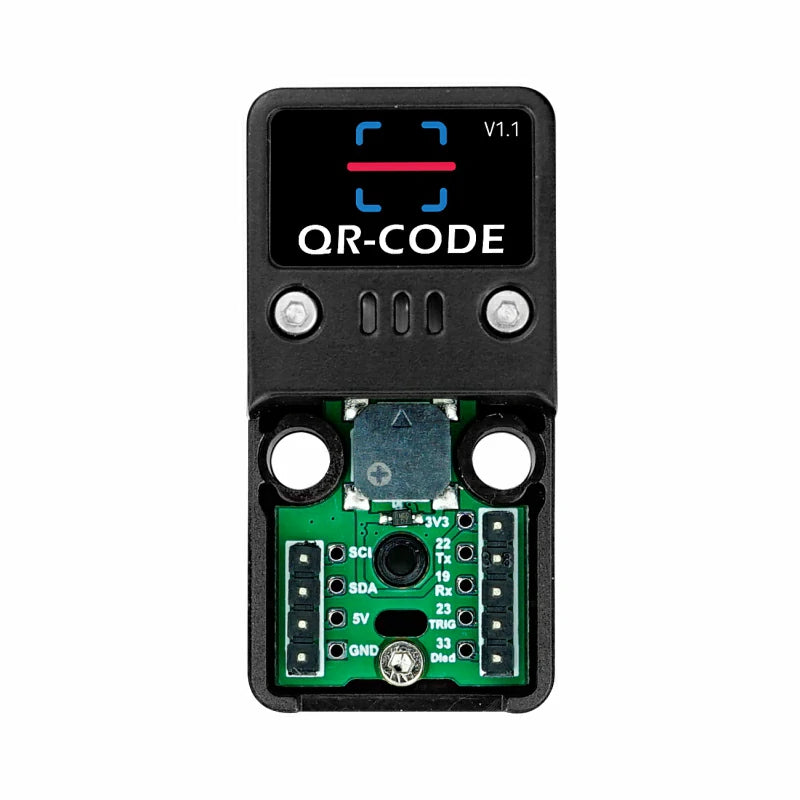

ATOM QR-CODE is a module designed for barcode and QR code scanning, specifically compatible with the M5Atom platform. It consists of two parts: the M5Atom Lite unit and the code scanning module. This module provides comprehensive support for various barcode and QR code formats, including 6 types of 2D codes and 19 types of 1D codes.

Equipped with a built-in lighting LED, the ATOM QR-CODE module ensures reliable code identification even in low-light or dark environments. The green LED serves as a convenient focusing and aiming aid. The high-resolution CMOS imaging technology enables precise code recognition with an effective accuracy of up to 5mil. The module offers multiple reading modes, allowing for automatic continuous trigger or manual trigger based on specific requirements. It incorporates a buzzer for different prompt sound effects to indicate various states and operations.

Additionally, the ATOM QR-CODE module supports various customization options, such as adding custom prefixes suffixes to the scanned data, defining multi-national keyboard layouts, and data editing functions. It utilizes TTL-232 for communication, enabling easy data transmission through a serial port. The module seamlessly integrates with Arduino or UIFlow programming environments, facilitating straightforward integration into your projects.

By connecting the module to the M5Atom Lite unit, you can send the scanned data to a receiver for further processing via wired or wireless connections. Benefit from the versatility and convenience of the ATOM QR-CODE module in barcode and QR code scanning applications.

Features

• Compatible with Atom Matrix Atom Lite
• Built in lighting and focus LED
• Support Wi-Fi Based on esp32
• UART TTL communication
• Manual and automatic scanning mode
• Light and sound reminders
• Multiple output formats
• Data can be pre-edited and hidden
• Rich custom instructions
• Support RAW GBK Unicode
• Support Arduino、UIFlow

• Includes

  • 1x ATOM QR-CODE
  • 1x M5Atom Lite
  • 1x Hex Key
  • 1x M2*8 Hexagon socket cup head machine screw
  • 1x TYPE-C USB Cable（20cm)

  • Applications

    • Cash register scanning
    • Barcode QR-code input device
    • Warehouse inventory

    • Specification

      Resources		Parameters
      Sensor		640×480 CMOS
      Illumination		White LED
      Focus		GreenLED
      Read QR code type		QR Code,Micro QR, Data Matrix, PDF417,Micro PDF417,Aztec
      Read Barcode type		EAN,UPC,Code 39,Code 93,Code 128,UCC EAN 128, Codabar,Interleaved 2 of 5, ITF-6,ITF-14,ISBN,ISSN, MSI-Plessey, GS1 Databar,Code 11,Industrial 25, Standard 25,Plessey, Matrix 2 of 5
      Recognition reading accuracy		≥5mil
      Reading range		EAN-13: 50-200mm(13mil), Code39: 40-90mm(5mil 10bytes), QR Code: 25-240mm(20mil 16bytes), Data Matrix: 50-90mm(10mil 20bytes), PDF 417: 30-130mm(6.67mil 7bytes)
      Contrast ratio		≥25%
      Scanning angle		Rotate 360°, Pitch ±55°, Yaw ±55°
      FOV		Horizontal 34°,Vertical 28°
      Communication interface		UART TTL
      Voltage and Current		DC 3.3V 170mA,Standby 10mA
      Case material		Plastic ( PC )
      Product Size		48mm × 24mm × 18mm
      Package Size		55mm × 55mm × 20mm
      Product Weight		17g
      Package Weight		37g

      EasyLoader

      EasyLoader is a concise and fast program writer, which has a built-in case program related to the product. It can be burned to the main control by simple steps to perform a series of function verification.

      Download Windows Version Easyloader Download MacOS Version Easyloader

      Description:
      Press the button to scan, and the scanning results will be displayed through the serial port

      Related Link

      • QR module serial control command list
      • User manual of QR code command
      • Easyloader For Windows
      • Easyloader For MacOS

      • Module Size



        Examples

        Arduino

        • The Arduino key controls the scanning case
        • • Arduino UART controls scanning cases

          • UIFlow

            • UIFlow UART controls scanning cases
            •
              • ATOM QR-CODE UIFlow Example
              •

                UIFlow Blocks

                • Init QRCode
                •
                  • Get read
                  •
                    • Get status
                    •
                      • Trigger ( ON OFF )
                      •
