Description

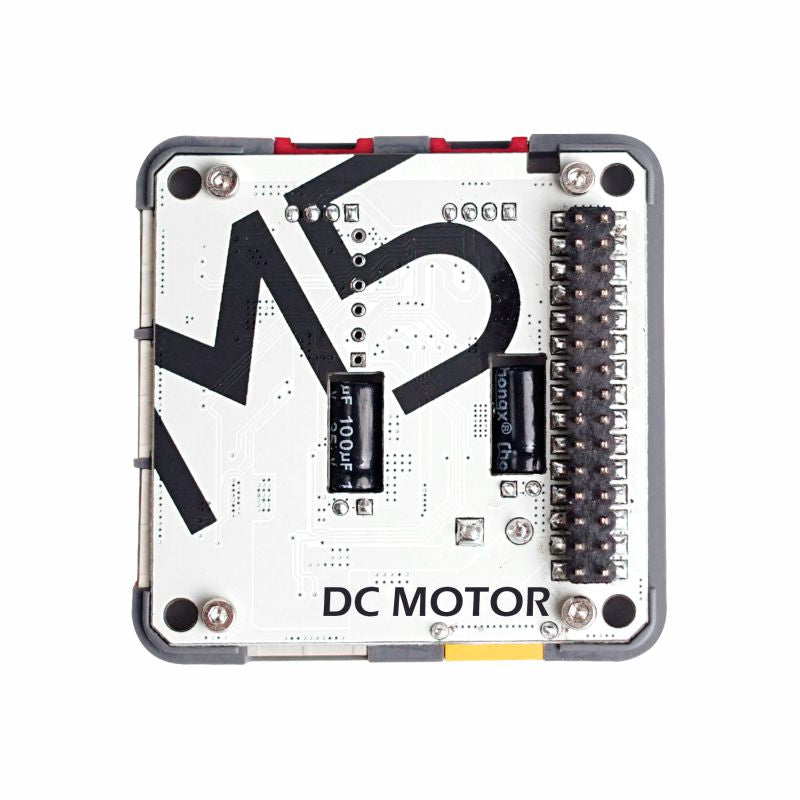

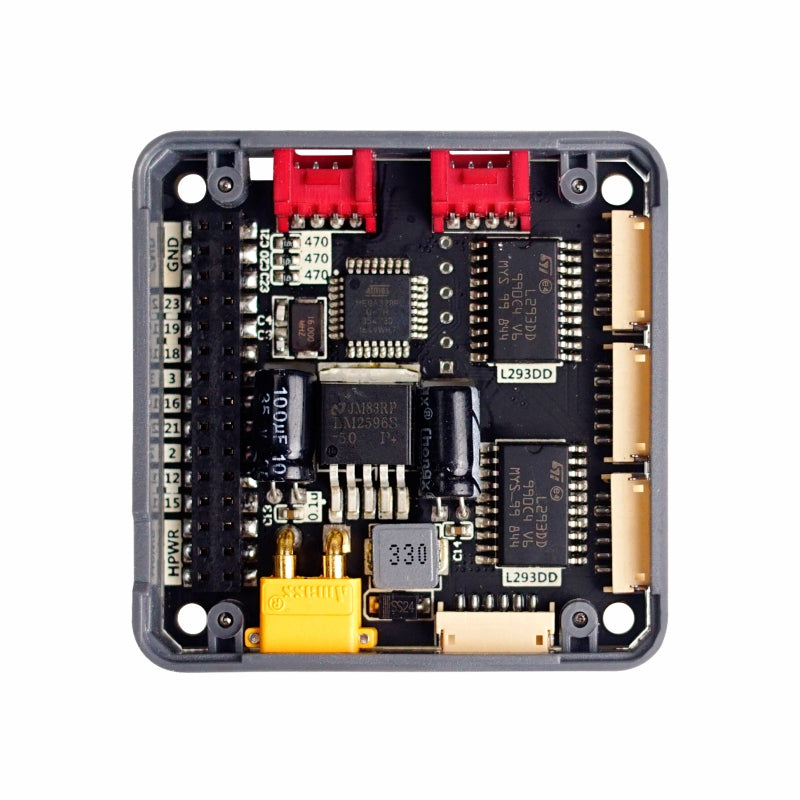

DC MOTOR is built with MEGA328 and L293DD micro controllers, implemented 4 driver channels. A DC power input is designed for power supplement. Through M-BUS the DC in can automatically power the M5 core at top. DC motor module can drive RJ12 interface encoder-motor easily and quickly, such as LEGO ev3 Motor.（This product is not affiliated with or endorsed by LEGO. LEGO is a trademark of the LEGO Group of companies）

Series Communication: I2C (0x56).

Product Features

• Communication Protocol: I2C (Address: 0x56)
• DC input: 6-12V
• DC connector type: XT30 (female)
• 4x motor drive channels (for LEGO EV3-RJ12 port coding motors)
• 2x I2C HY2.0-4P interface (expanded by A port of M5Core)

• Include

  • 1x DC MOTOR module
  • 1x 10cm motor cable
  • 1x DC connector

  • Specification

    Specifications		Parameters
    Communication Protocol		I2C (Address: 0x56)
    Motor driver chip		L293DD
    Power input voltage		DC: 6-12V
    Power Connector Specifications		XT30 (female)
    Motor interface specification		ZH1.5-6P
    Net Weight		17g
    Gross Weight		48g
    Product size		54 * 54 * 12mm
    Packing Size		95 * 65 * 25mm
    Shell Material		Plastic ( PC )
