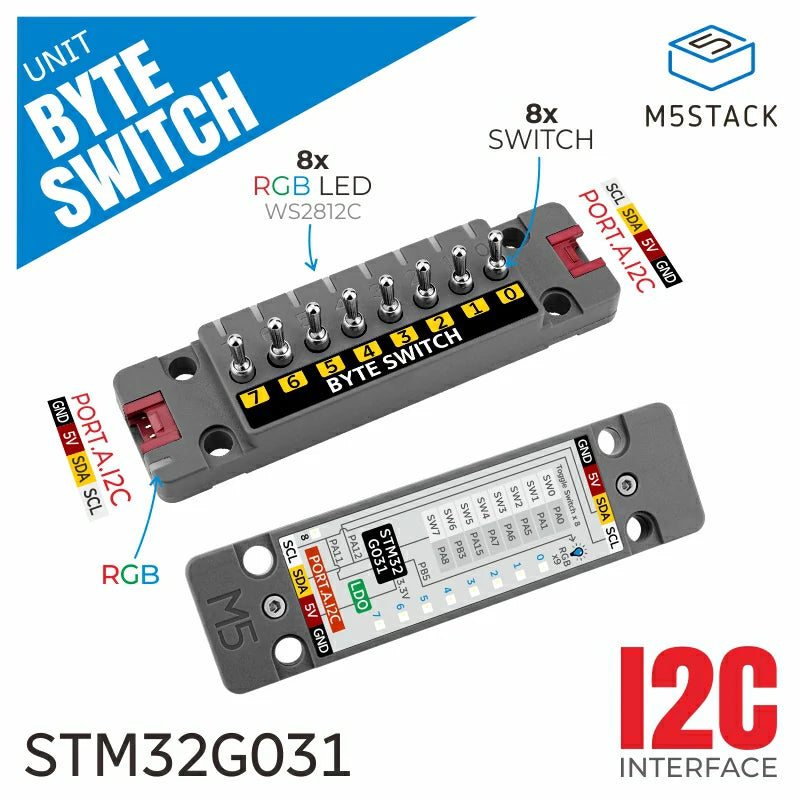

Unit ByteSwitch is an 8-channel toggle switch input unit, equipped with 8 toggle switches and 9 WS2812C RGB LEDs. It uses the STM32 as the main controller and supports I2C communication. The board includes two Port A I2C interfaces and supports cascading multiple Unit ByteSwitch units to meet the needs of complex systems. It can detect toggle switch inputs and provide dynamic light status feedback, suitable for applications such as smart home control, gaming entertainment devices, educational development platforms, industrial status display, and interactive exhibitions.

Features

• 8 toggle switch inputs
• 9 WS2812C RGB LEDs
• STM32 main controller
• I2C communication interface
• Development platform:
  • UIFlow 1.0
  • UIFlow 2.0
  • Arduino IDE

  • • Included

      • 1x Unit ByteSwitch
      • 1x HY2.0-4P cable (20cm)
      • 1x tags

      • Applications

        • Smart home control panels
        • Gaming or entertainment device controllers
        • Education and laboratory development platforms
        • Status control and feedback devices
        • Portable device debugging tools
        • Interactive exhibitions or scene controls
        • User interface for small instruments

        • Specifications

          Specification		Parameter
          MCU		STM32G031G8U6, 32-bit ARM Cortex-M0+ core, 64 MHz
          Toggle Switch		8 independent toggle switches
          RGB LEDs		WS2812C-2020 (9 LEDs)
          Communication Interface		I2C communication @ 0x46
          Grove Interface		2 (I2C bus cascading expansion)
          Standby Power Consumption		DC 5V @ 9.03mA
          Operating Temperature		0-40°C
          Product Dimensions		88.0 * 24 * 19.6mm
          Package Dimensions		169.0 * 119.0 * 21.0mm
          Product Weight		22.5g
          Package Weight		29.1g
