Description

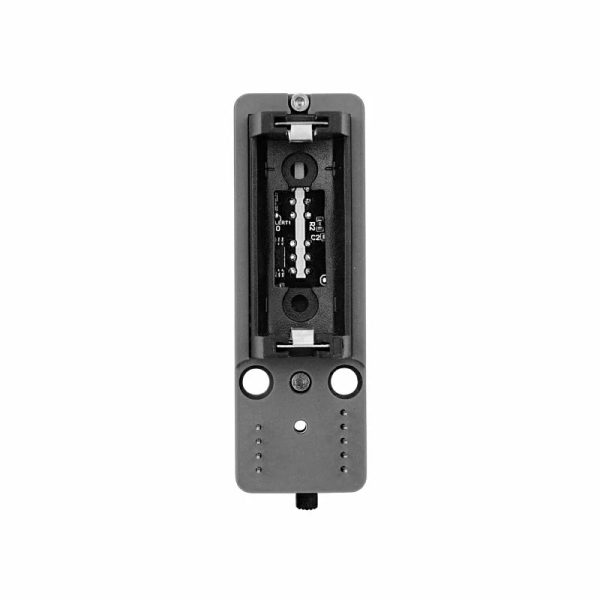

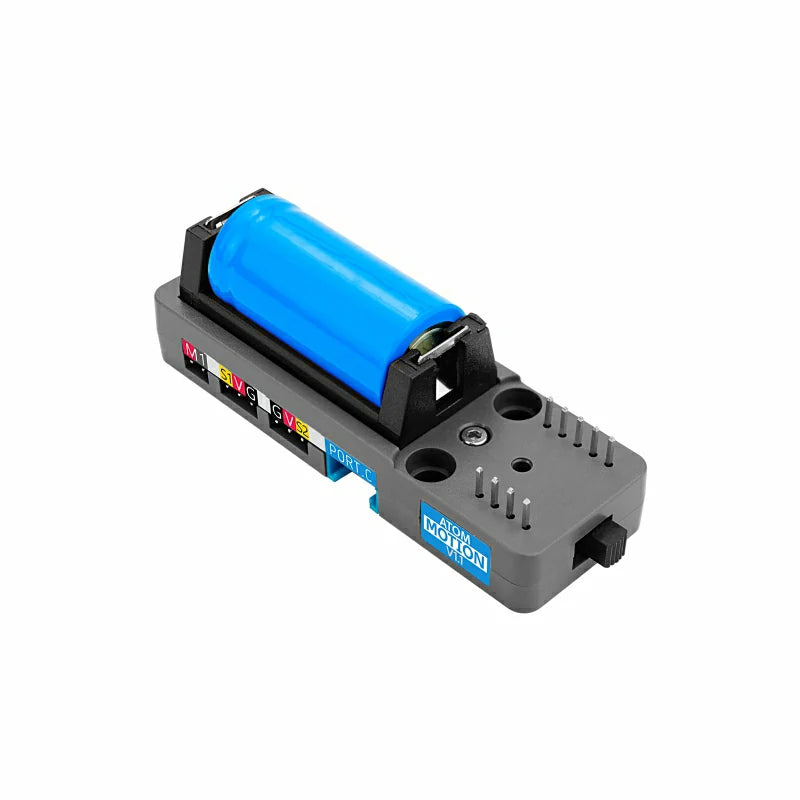

Atomic Motion Base v1.1 is a servo and DC motor driver base designed for the ATOM controller series. The product provides 4-channel servo interfaces and 2-channel DC motor interfaces, while also featuring two Grove interfaces for easily connecting various sensors and expansion devices. In terms of communication, it uses the I2C protocol and is equipped with an STM32 controller chip to ensure stable data transmission. For power supply, it integrates an 18350 lithium battery (900mAh) and uses an INA226 current voltage detection chip to monitor battery voltage, current, and power in real time, ensuring stable and safe power for the system. Additionally, it includes an overload protection feature to prevent damage to the device from excessive loads. The product also includes a battery charging function to conveniently charge the battery, extending usage time. An independent power switch is mounted for easy user operation of the power on off function. This product is suitable for multi-servo control, robotics development, smart device prototyping, and automation experiments.

Features

• Compatible with the ATOM series controllers
• 4-channel servo control
• 2-channel DC motor control
• Detachable lithium battery
• Magnetic back design
• Independent power switch
• 2 Grove interfaces
• Chargeable
• Battery current voltage detection
• Development platforms:
  • UIFlow 1.0
  • UIFlow 2.0
  • Arduino IDE

  • • Includes

      • 1 x Atomic Motion Base v1.1

      • Applications

        • DC motor car control
        • Servo robotic arm control

        • Specifications

          Specification		Parameter
          DC Motor Driver		RZ7899
          Power Detection Chip		INA226
          Charge Discharge Chip		ETA9740
          Overload Protection		5V@5A
          Detachable Lithium Battery		18350@900mAh
          Motor Interface Pin Pitch		2.54mm
          Full Load Steering Current		3A
          Peak Current per Motor		1A
          Peak Current per Servo		0.4A
          Standby Current (Switch On)		[email protected]
          Charging Current		[email protected]
          Grove Interface		HY2.0-4P
          Operating Temperature		0-40°C
          Product Size		74.0 x 24.0 x 20.7mm
          Packaging Size		77.0 x 30.0 x 26.0mm
          Product Weight		41.1g
          Packaging Weight		44.8g
