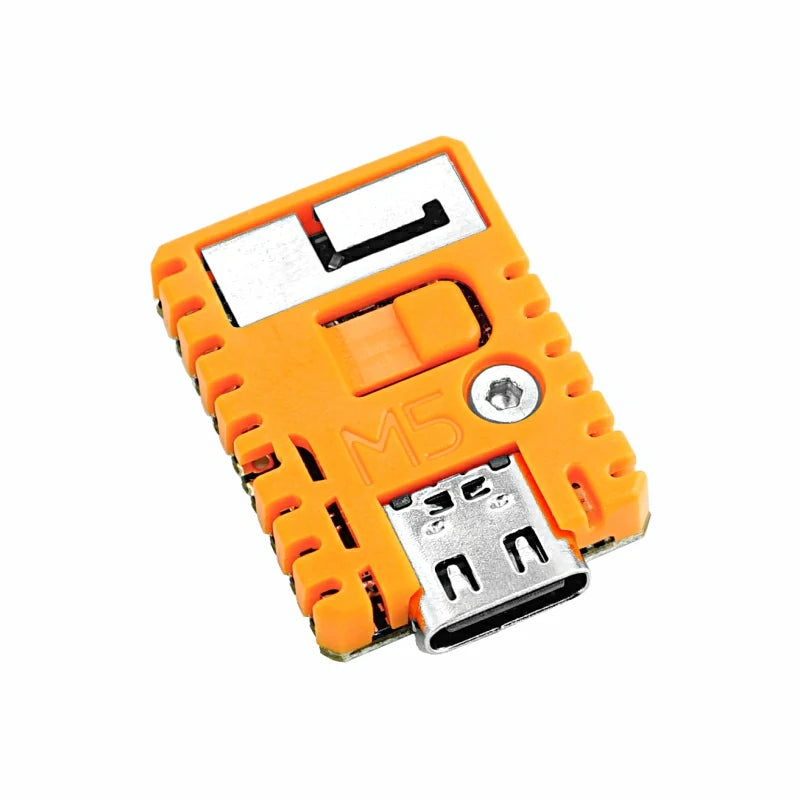

M5StampS3 PIN1.27 is a highly integrated embedded Controller. Same as StampS3, this controller leverages the power of the ESP32-S3FN8 chip, featuring an impressive 8MB SPI flash memory for ample storage capacity. Equipped with a high-performance Xtensa 32-bit LX7 dual-core processor, running at a staggering main frequency of up to 240MHz, it delivers exceptional processing power.

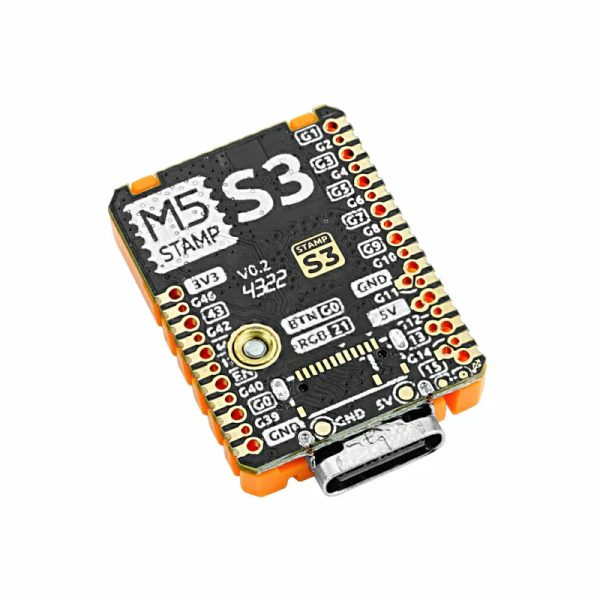

The M5StampS3 PIN1.27 module conveniently leads out 23 GPIOs from the ESP32-S3 chip, utilizing a 1.27mm spacing needle. This design allows for easy and seamless connection and expansion with other devices. It provides users with the flexibility to integrate additional components and expand the capabilities of their projects.

With its compact form factor, the M5StampS3 PIN1.27 strikes a perfect balance between size and performance. It offers rich expansion IO options, providing ample room for customization and scalability. Moreover, the module is designed with low power consumption in mind, ensuring efficient energy usage for extended operation. Whether you re working on IoT applications or other embedded projects, the M5StampS3 PIN1.27 is the ideal main control module, combining compactness, powerful performance, rich IO capabilities, and energy efficiency.

Features

• ESP32-S3FN8(2.4GHz Wi-Fi)
• Integrated programmable RGB LED and button
• 1.27mm pin header
• Support UIFlow graphical programming

• Includes

  • 1 * M5StampS3 PIN1.27
  • 1 * Silk screen stickers

  • Applications

    • Smart home
    • Wearables
    • Medical equipment

    • Specification

      Resources		Parameters
      MCU		ESP32-S3FN8
      DCDC		Highly integrated MUN3CAD01-SC
      Flash		8MB
      Input voltage		5V
      Interactive		Programmable physical buttons x 1, programmable RGB LED (WS2812B-2020) x 1
      Antenna type		2.4G 3D antenna
      Module resource interface		Touch sensor, SD SDIO MMC master controller, SPI, SDIO SPI slave controller, EMAC, motor PWM, LED PWM, UART, I2C, I2S, GPIO, pulse counter
      IO interface x23		G0 G1 G2 G3 G4 G5 G6 G7 G8 G9 G10 G11 G12 G13 G14 G15 G39 G40 G41 G42 G43 G44 G46
      Pin header spacing		1.27mm
      lcd interface spacing		0.5mm@12pin or 8pin
      Operating temperature		0°C to 40°C
      Product Size		26mm × 18mm × 4.6mm
      Package Size		136mm × 92mm × 13mm
      Product Weight		3.1g
      Package Weight		5.6g
